1x8 Branch type PLC Splitter factory direct sale for FTTH system
Fiber Optic PLC Splitter Description
Seacent Photonics’s 2x N Planar Light wave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character.
Seacent Photonics’s 1 x N PLC Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.
Fiber Optic PLC Splitter Features
- Low loss and stable polarization.
- High stability and reliability
- Certified by Telcordia GR.1209 and GR.1221.
Fiber Optic PLC Splitter Application
- fiber to the home
- Passive optical network
- Cable TV network
- PON-FTTX network
Fiber Optic PLC Splitter Parameters
| Parameter | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Working wavelength (nm) | 1260-1650 |
| Fiber type | G657A1 or customized |
| Insertion loss (dB) | 7.2 | 10.2 | 13.5 | 16.8 | 20.1 |
| Uniformity (dB) | ≤0.5 | ≤0.8 | ≤1.0 | ≤1.5 | ≤1.8 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
| Parameter | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Working wavelength (nm) | 1260-1650 |
| Fiber type | G657A1 or customized |
| Insertion loss (dB) | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Fiber Optic PLC Splitter Detailed Specification
PLC Splitter-Branch type-Seacent Photonics.pdf
Product Tags:
|
|

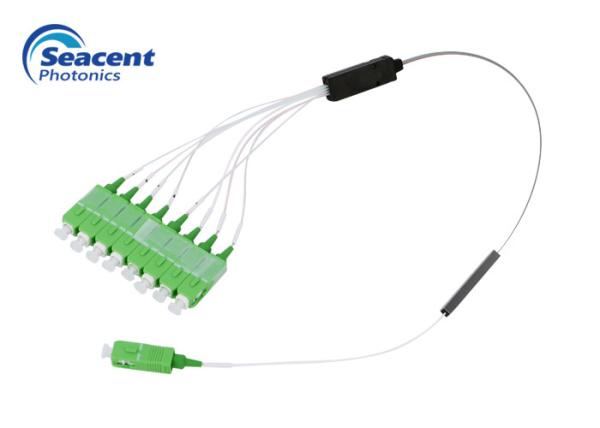

1x8 Branch Type Fiber Optic Plc Splitter Good Channel Uniformity 1260-1650 Nm Images
|
